82-210: 10” Wet Sharpener – Variable Speed

SKU: 82-210 Category:

10” WET SHARPENER 82-210 with variable speed motor puts a keen edge on a wide variety of cutting tools, without the overheating that can ruin your edge. After grinding, you can reverse the motor and the leather wheel strops away any burrs, and then hones the edge to its final sharpness. Ideal for chisels, plane blades, turning and carving tools, knives, axes and more. A tool holding jig and angle guide are included to make putting the right cutting angle on your tools easy and consistent, every time.
FEATURES
• Variable Speed / Reversible Motor
• 10” Vitrified aluminum oxide grinding wheel
• Deep water trough
• Leather honing wheel
• Slow rotation speed 90 RPM
• High rotation speed 160 RPM
• 10mm Diameter Support Arm
• Includes Angle Guide, Grinding Jig, and Honing Compound

Tech Specs

Motor Horsepower1/5 HP
Motor Amps1.3
Motor Volts120V, 60 Hz
Motor Speed (Variable)1,750 RPM Wet: 90 to 160 RPM
Wheels DiameterWet Wheel: 10”(250mm)
Wheels Stone WidthWet: 2” (50mm)
Wheels Stone GritsWet: Vitrified Aluminum Oxide, 220 Grit
Wheels Arbor1/2”
Overall Length12” (305 mm)
Overall Width16-3/4” (425 mm)
Overall Height13-1/2” (345 mm)
Overall Base Size16-3/4” (425 mm) x 12” (305 mm)
Overall Net Weight31 lbs (14 kg)
Warranty5 Years

Accessories

82-901 Turning Gouge Jig for 82-100, 82-210 $39.99 In Stock Add to cart
82-902 Carving Tool Jig for 82-100, 82,210 $29.99 In Stock Add to cart

Manuals

Download manual (English)Download manual (Spanish)Download manual (French)

Parts List

No parts found

Sell Sheets

Download sell sheet (English)

Compare



Product Info

Model 80-808: 8" Low Speed Grinder

Model 80-800VS: 8" Variable Speed Bench Grinder

Model 80-805: 8" Low Speed Grinder

Sku 80-808 80-800VS 80-805
Motor Horsepower 1 HP 3/4 HP 1/2 HP
Motor Amps 7 5 3
Motor Volts 120V, 60 Hz 120V, 60 Hz 120V, 60 Hz
Motor Speed (Variable) 1,750 RPM 2,000 – 3,400 RPM 1,750 RPM
Wheels Diameter 8” 8” 8”
Wheels Stone Width 1” 1” 1”
Wheels Stone Grits 60 & 120 60 60 & 120
Wheels Arbor 5/8” 5/8” 5/8”
Overall Length 10-1/4” 17” 16-3/8”
Overall Width 19” 14” 10-3/4”
Overall Height 12-1/8” 17” 11-1/4”
Overall Base Size 9-1/2” x 6-3/4” 9” x 6-3/4” 7-5/8” x 5-1/2”
Cord Size 6’ 6’ 6’
Overall Net Weight 54 lbs. 39 lbs. 34.2 lbs.
Warranty 5 Years 5 Years 5 Years
Wheels Wire Width - 5/8” -

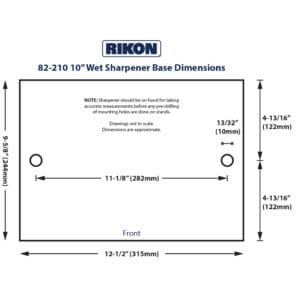

Base Dimensions

DOWNLOAD BASE DIMENSIONS
